Description

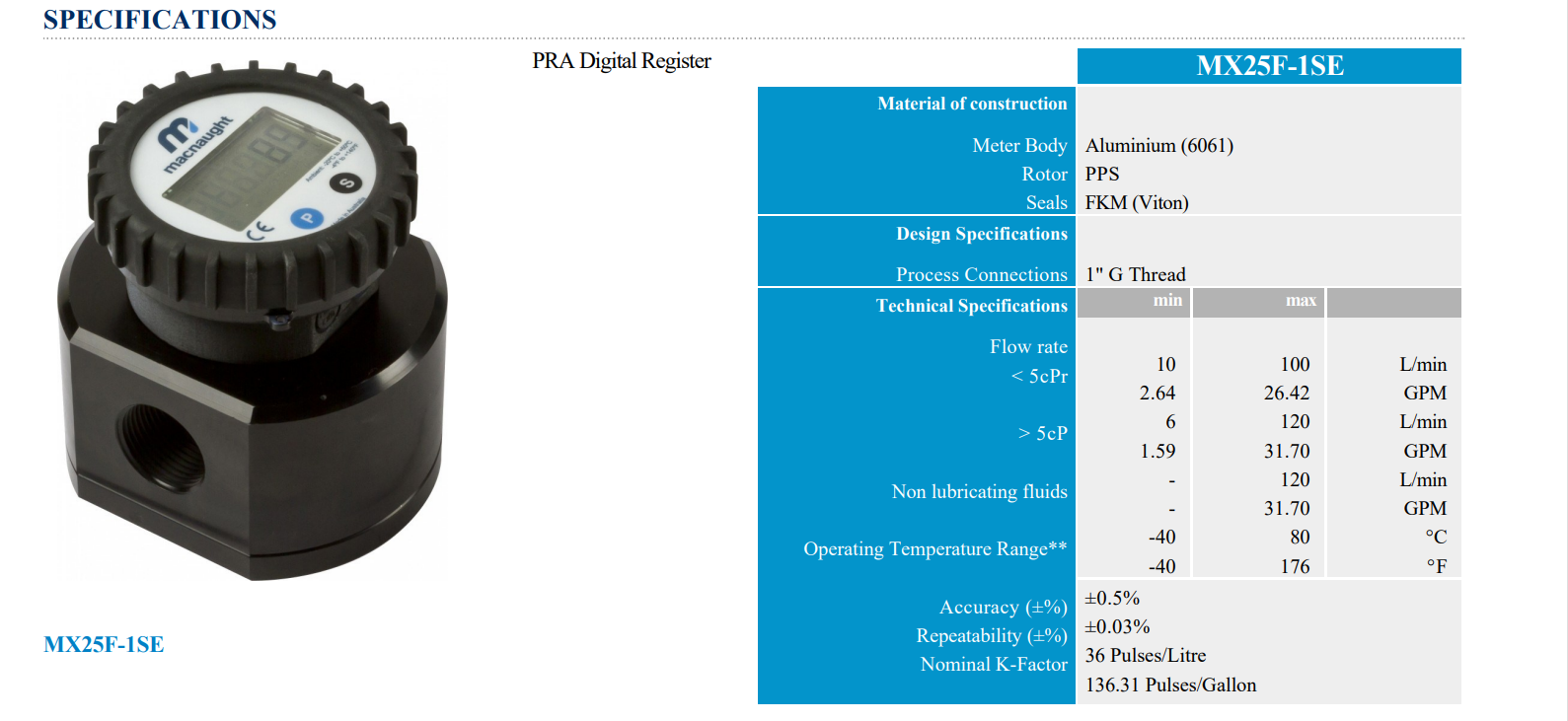

The MX Series 1" DIGITAL FLOW METER are suitable for flows between 6 - 120 L/min (1.59 - 31.70 GPM), providing highly accurate flow measurement performance. The MX Series offers ±±0.5% accuracy of true reading in a compact footprint, requiring no flow conditioning and with high pressure and temperature capabilities.
Key features include:
Aluminium (6061) construction
FKM (Viton) seals
Maximum flow rate 120 L/min / 31.70 GPM
Accuracy of ±±0.5% of reading
Exceptional repeatability of ±±0.03%
Temperature up to 80 °C / 176 °F
1 point factory calibration as standard, with additional points upon request
描述
MX系列1"數字流量計適用于6 - 120升/分鐘（1.59 - 31.70加侖/分鐘）的流量，提供高度精確的流量測量性能。
MX系列具有±±0.5%的真實讀數精度，結構緊湊，無需流量調節，并具有高壓和高溫能力。
主要特點包括：
鋁合金（6061）結構
FKM（Viton）密封
最大流量120升/分鐘 / 31.70加侖/分鐘
讀數精度±±0.5%
優異的重復性±±0.03%
最高溫度可達80°C / 176°F
標準提供1點工廠校準，可根據要求提供額外的校準點
