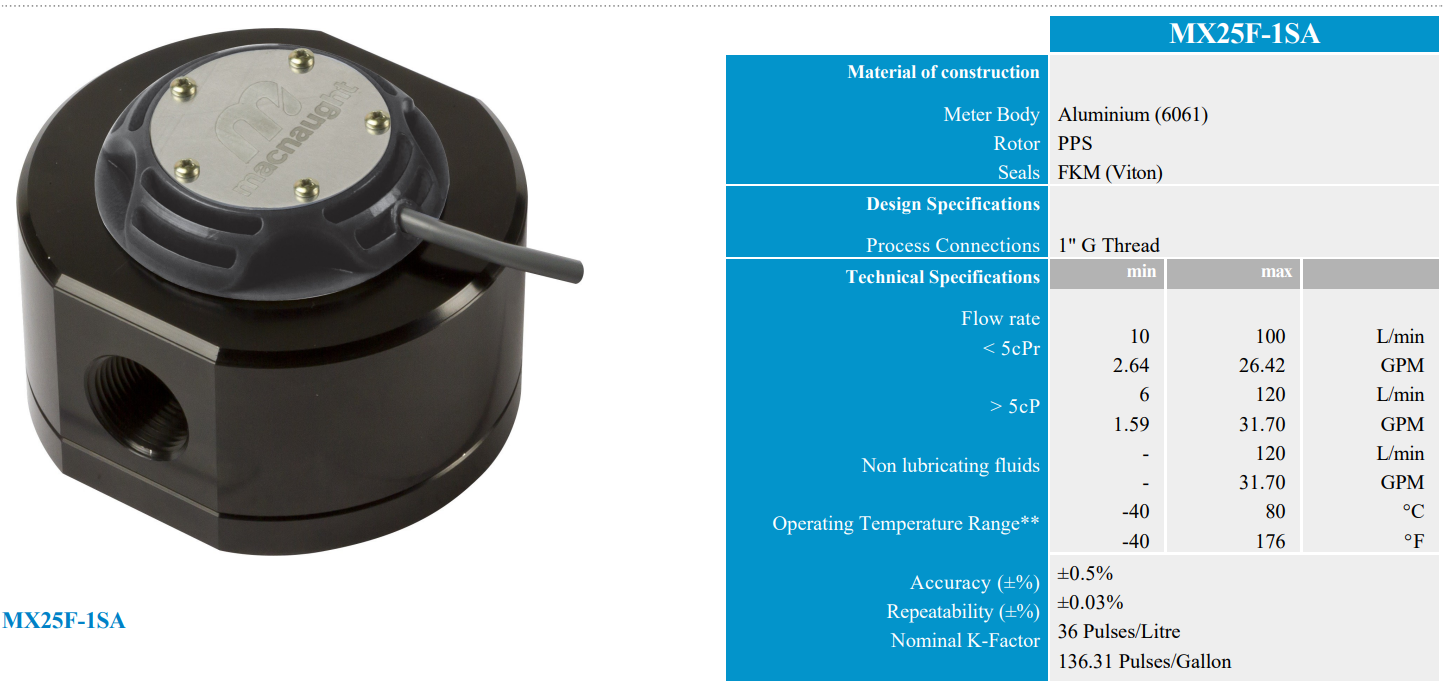

MX25F-1SA - 1" DIGITAL FLOW METER WITH STANDARD PULSE
The MX Series 1" DIGITAL FLOW METER are suitable for flows between 6 – 120 L/min (1.59 - 31.70 GPM), providing highly accurate flow measurement performance.
The MX Series offers ±±0.5% accuracy of true reading in a compact footprint, requiring no flow conditioning and with high pressure and temperature capabilities.
Key features include:
Aluminium (6061) construction FKM (Viton) seals Maximum flow rate 120 L/min / 31.70 GPM Accuracy of ±±0.5% of reading Exceptional repeatability of ±±0.03% Temperature up to 80 °C / 176 °F 1 point factory calibration as standard, with additional points upon reques
MX25F-1SA - 1" 數字流量計，標準脈沖
MX系列1"數字流量計適用于6-120 L/min（1.59-31.70 GPM）之間的流量，提供高度準確的流量測量性能。
MX系列提供±0.5%真實讀數的精度，結構緊湊，無需流量調節，具有高壓和高溫能力。
主要特點包括：
鋁（6061）結構
FKM（Viton）密封
最大流量120 L/min / 31.70 GPM
±0.5%的讀數精度
±0.03%的異常重復性
最高溫度可達80°C / 176°F
標準1點工廠校準，可根據要求提供其他校準點
SPECIFICATIONS

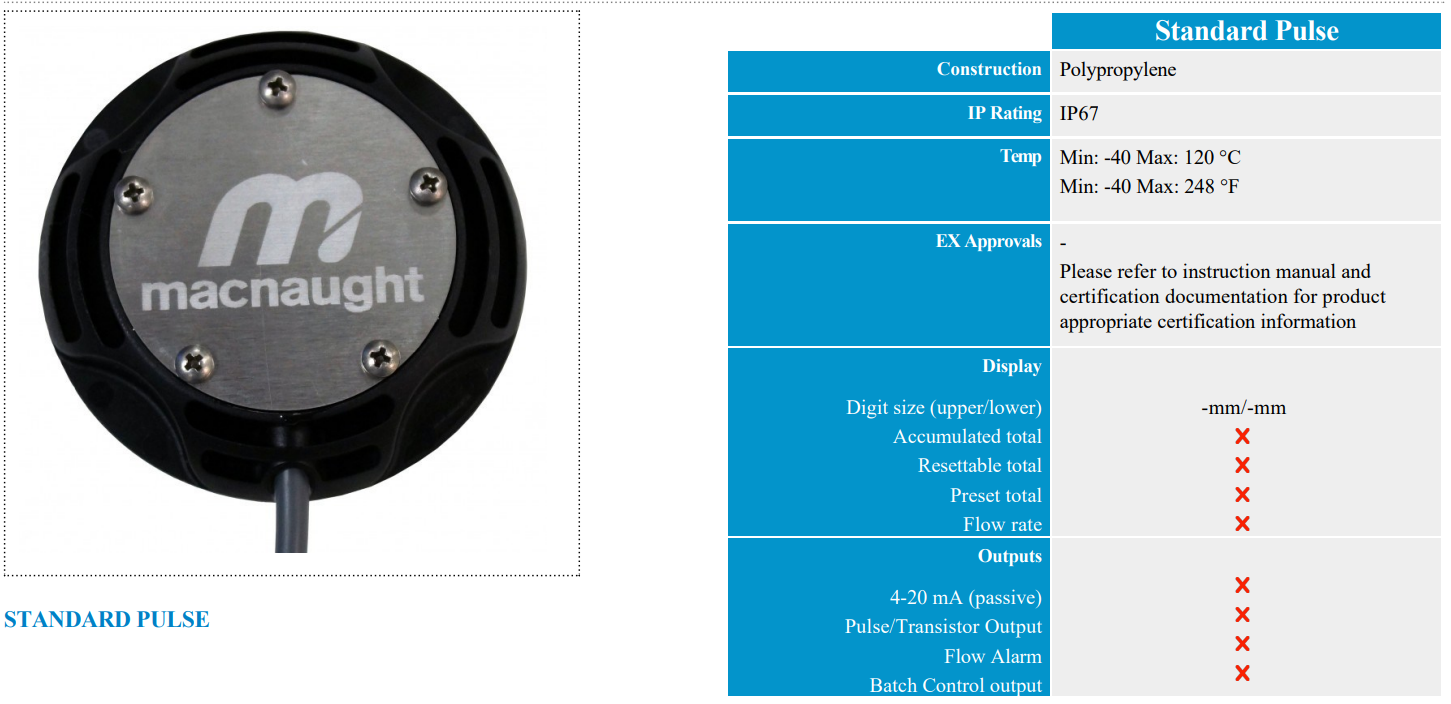

OUTPUT TYPE
