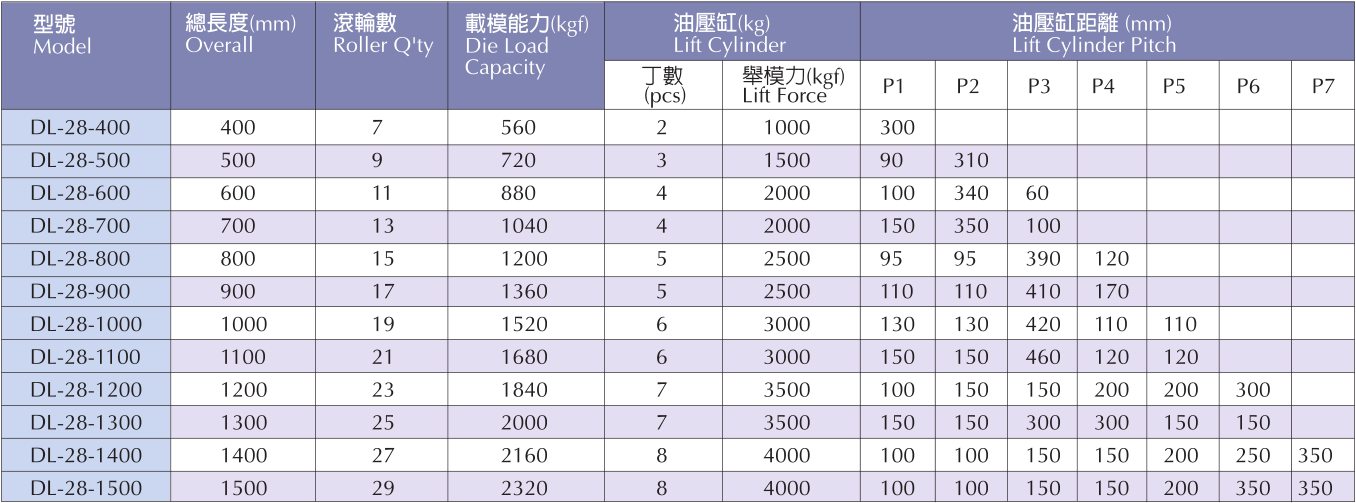

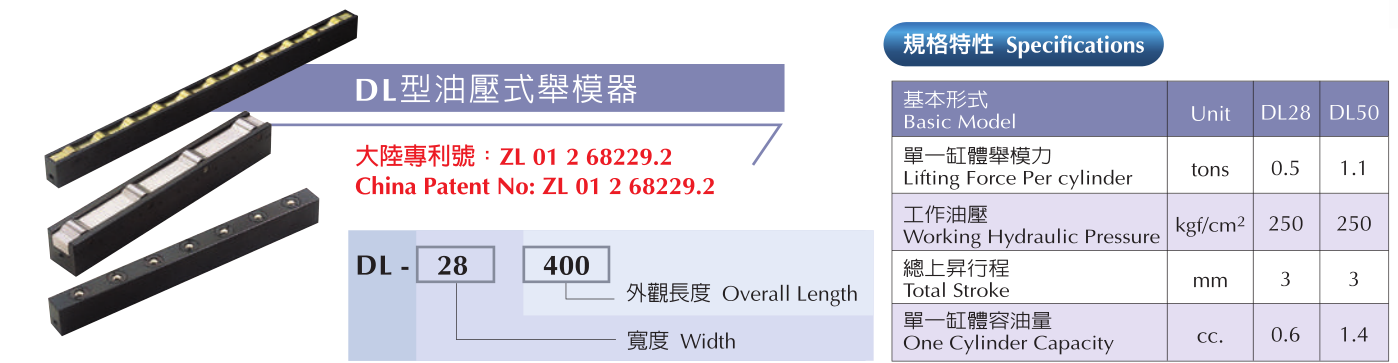

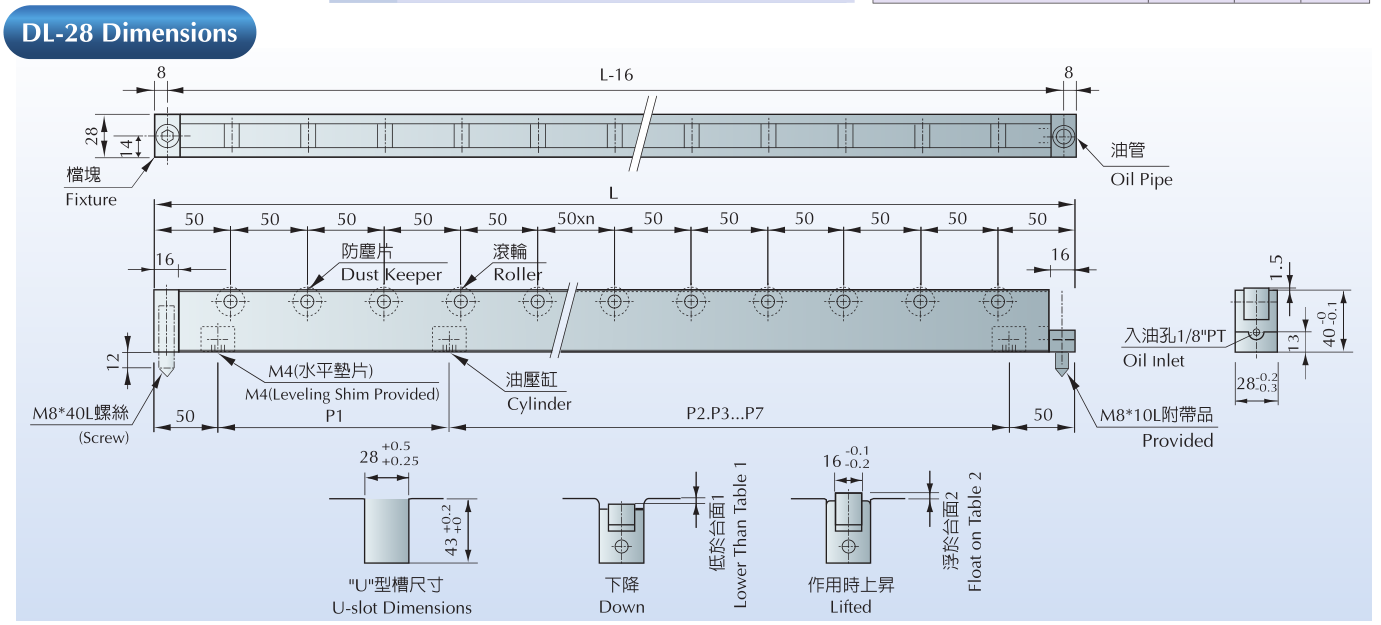

DL型油壓式舉模器，以油壓方式舉模，有強力舉模能力，適合模具重量變化差異大時使用。
The hydraulic DL DIE LIFTER withstands heavy loads and abuse.
The scrap guard / scrapers keep the roller surfaces free from scrap.
The rollers are arrayed in closer pitches to prevent damage to the bottom of heavy dies.
The height of the roller can be adjusted by removing some of built-in shims of different thicknesses.

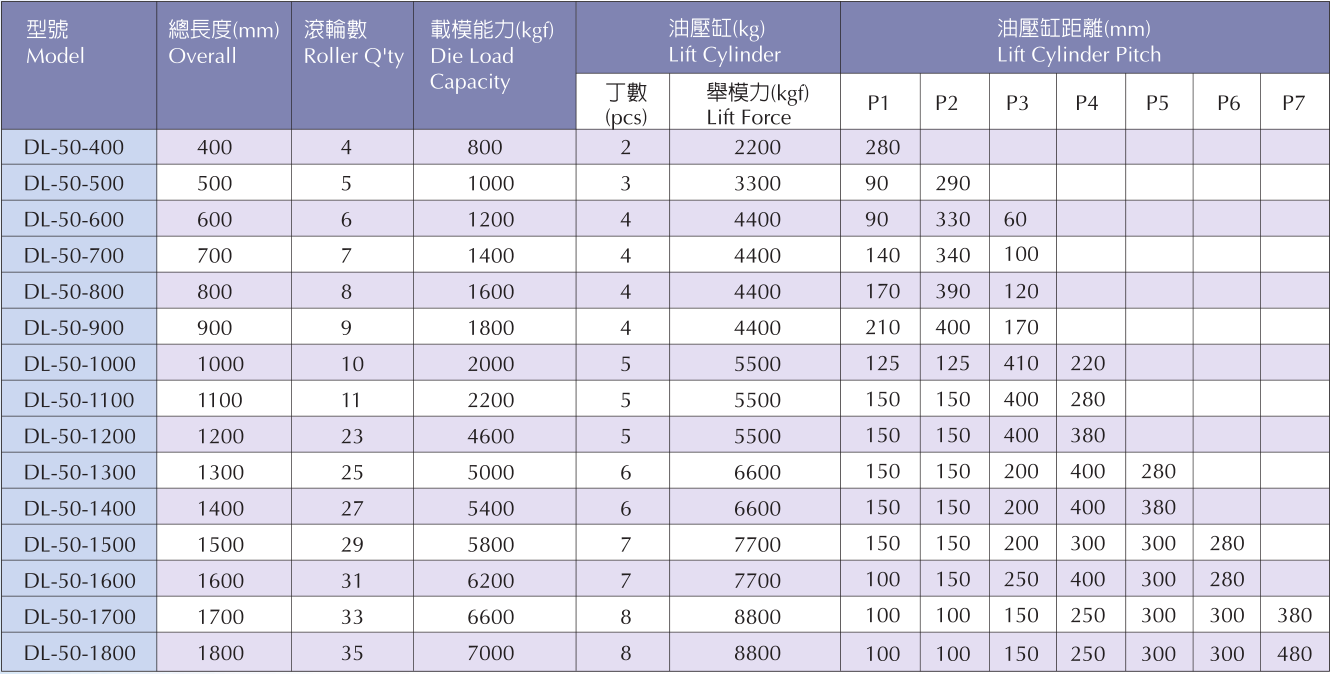

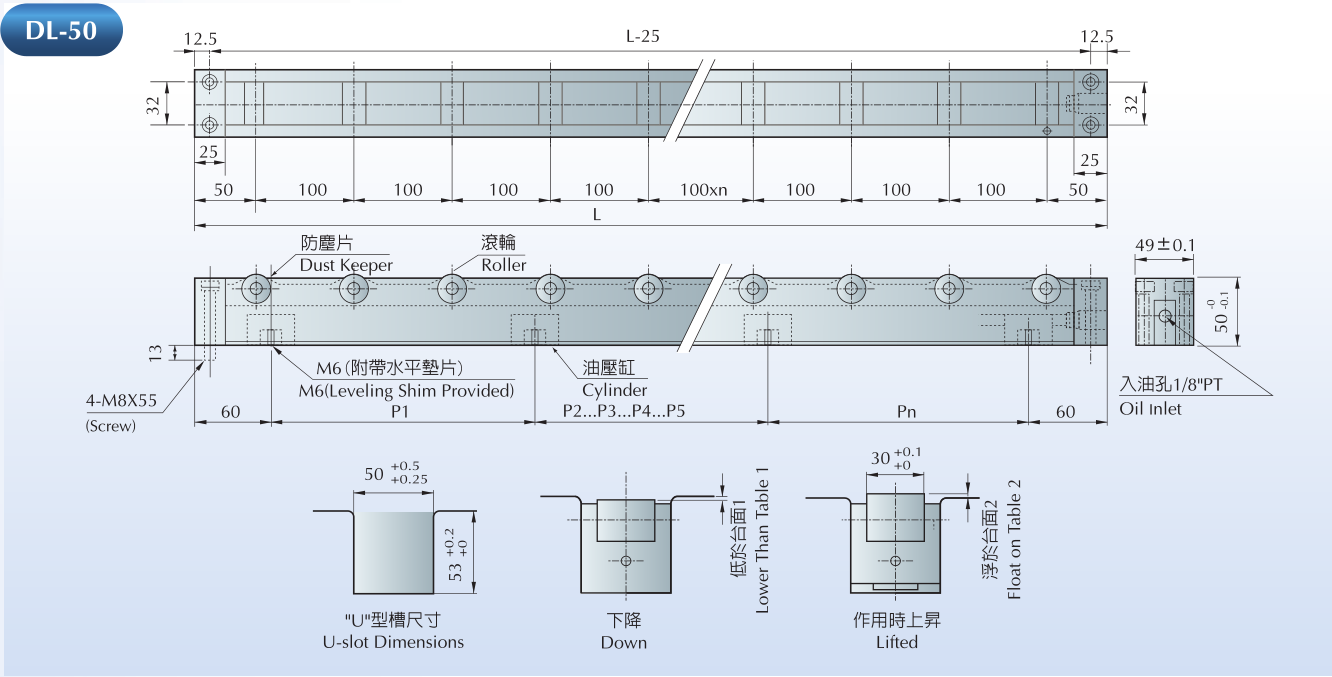

●1000L以上建議使用DL-50
●注：訂購時，如有下料孔請附臺盤圖。
For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom.

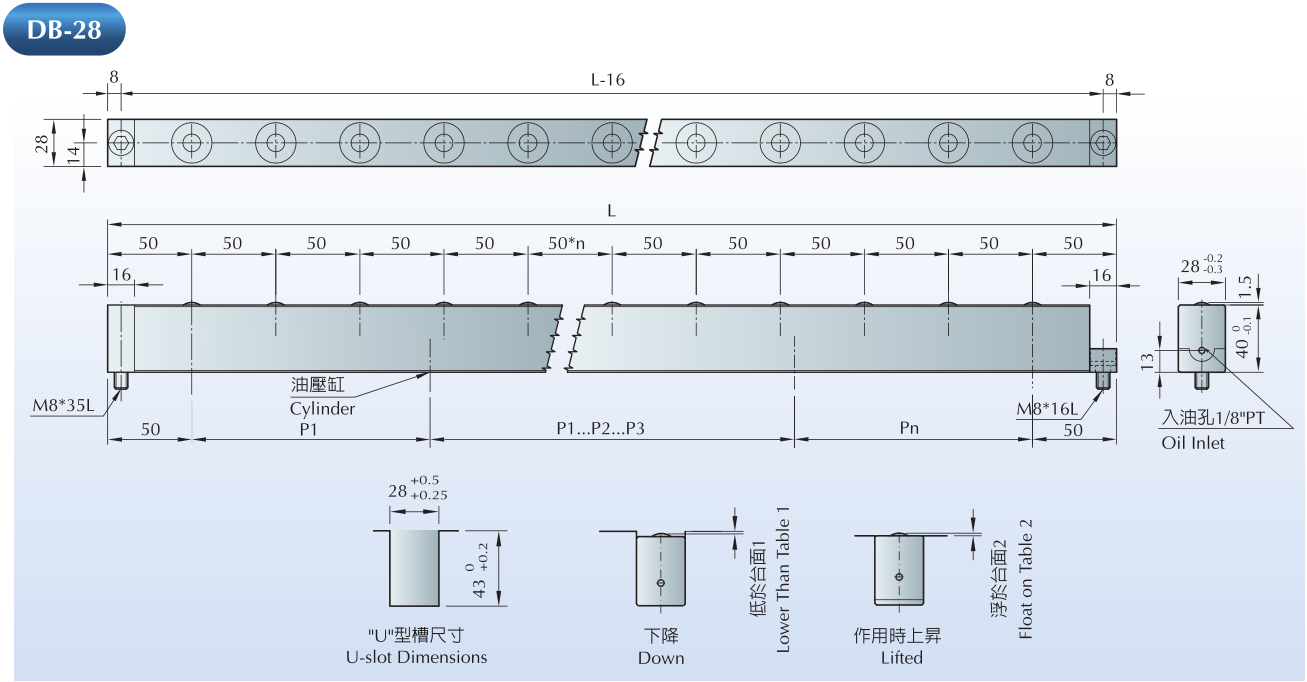

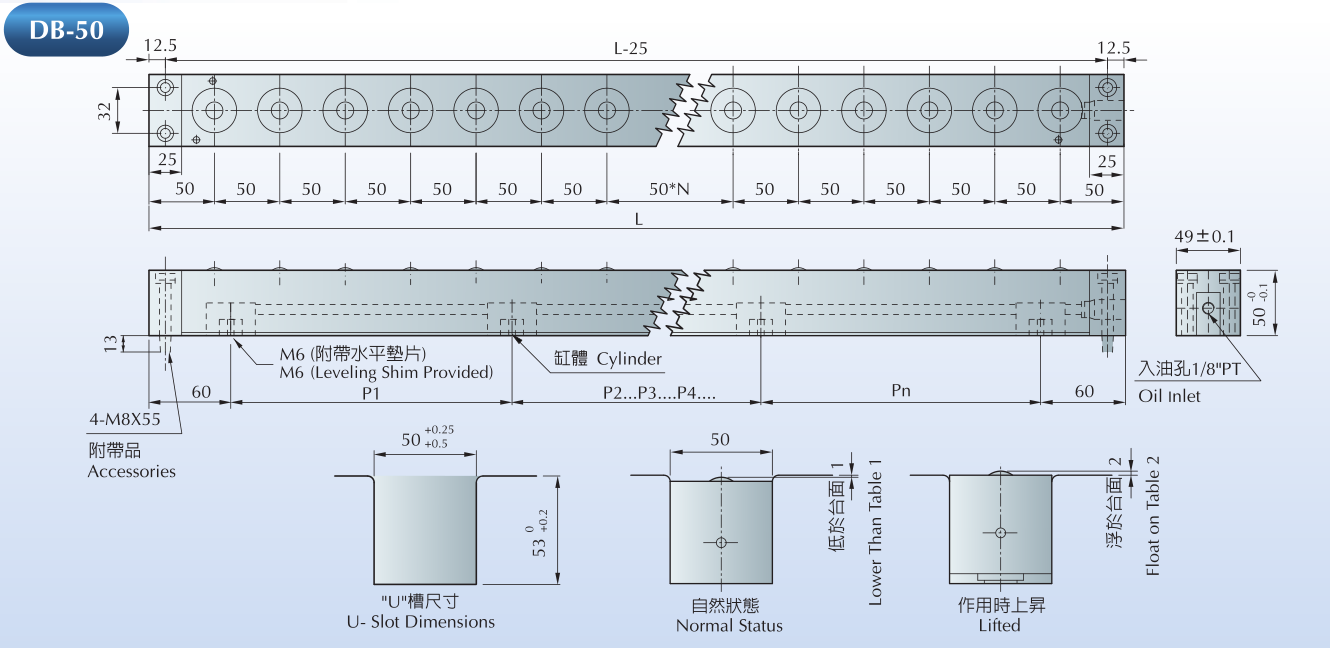

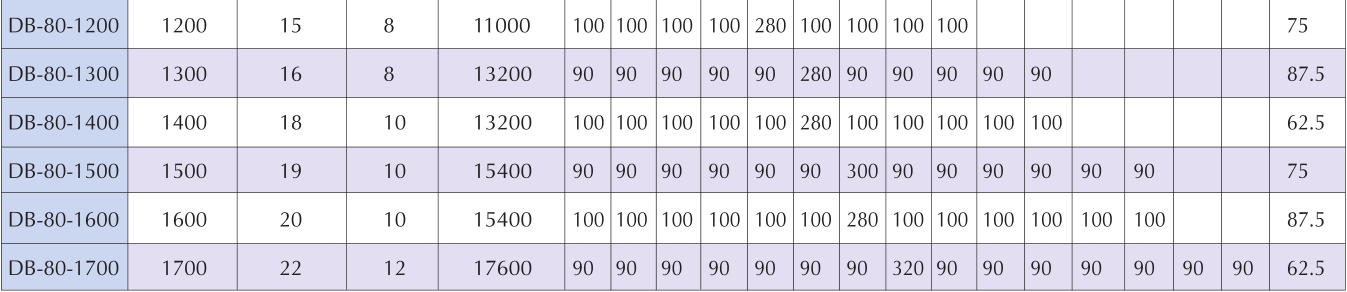

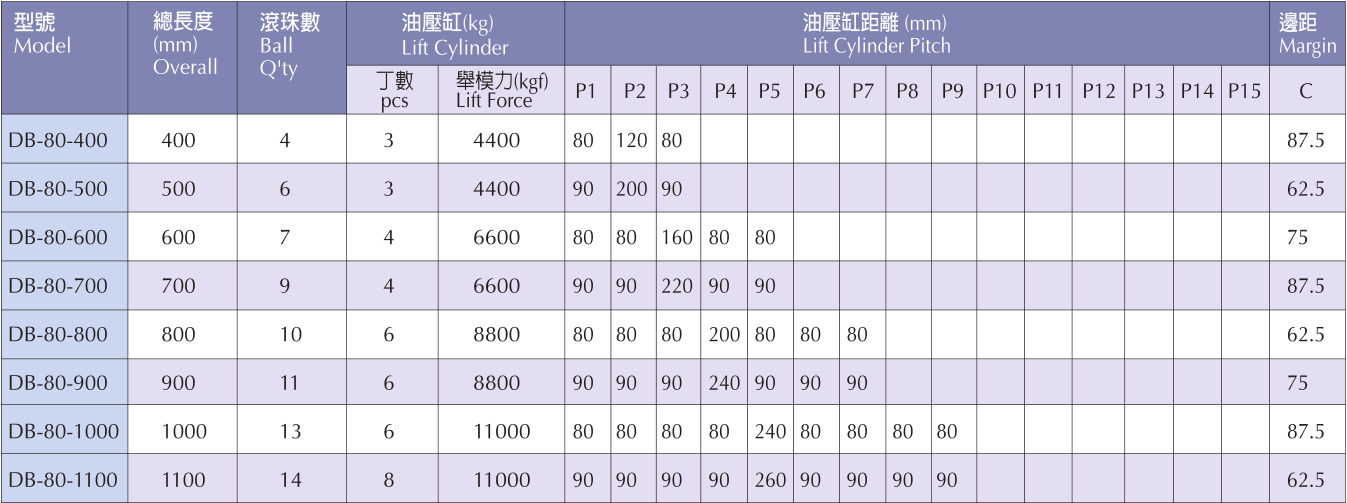

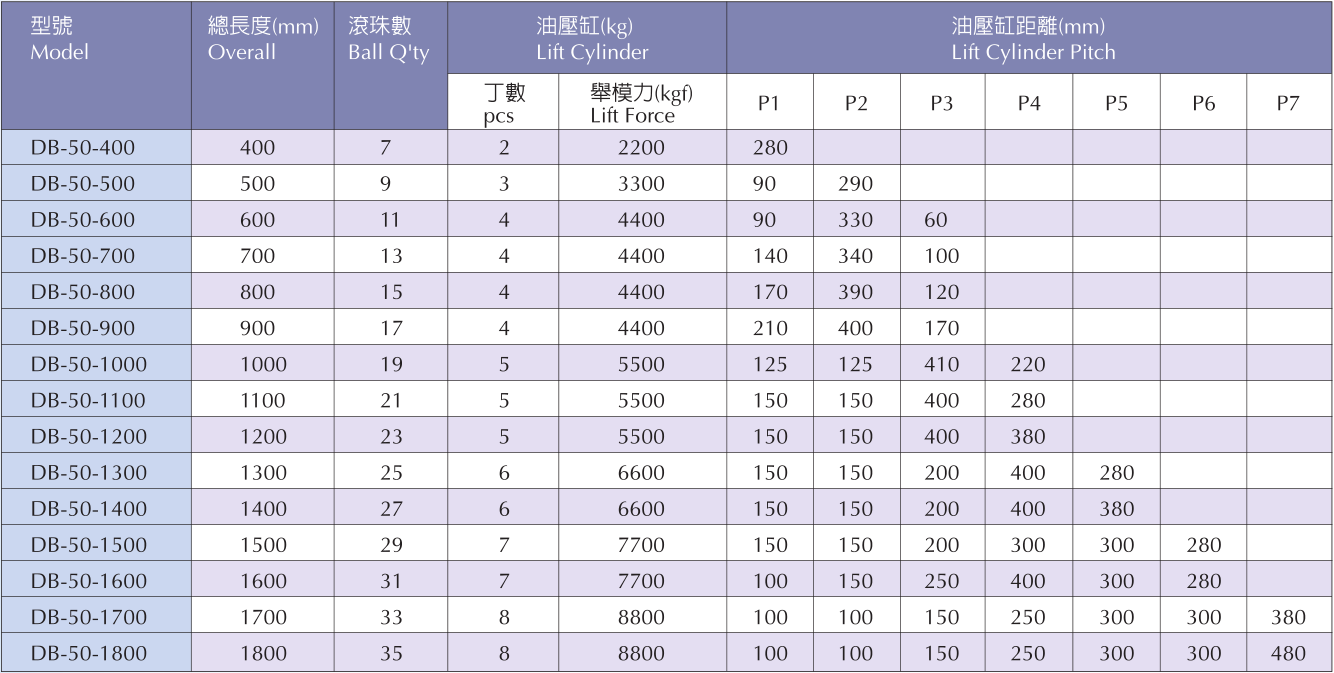

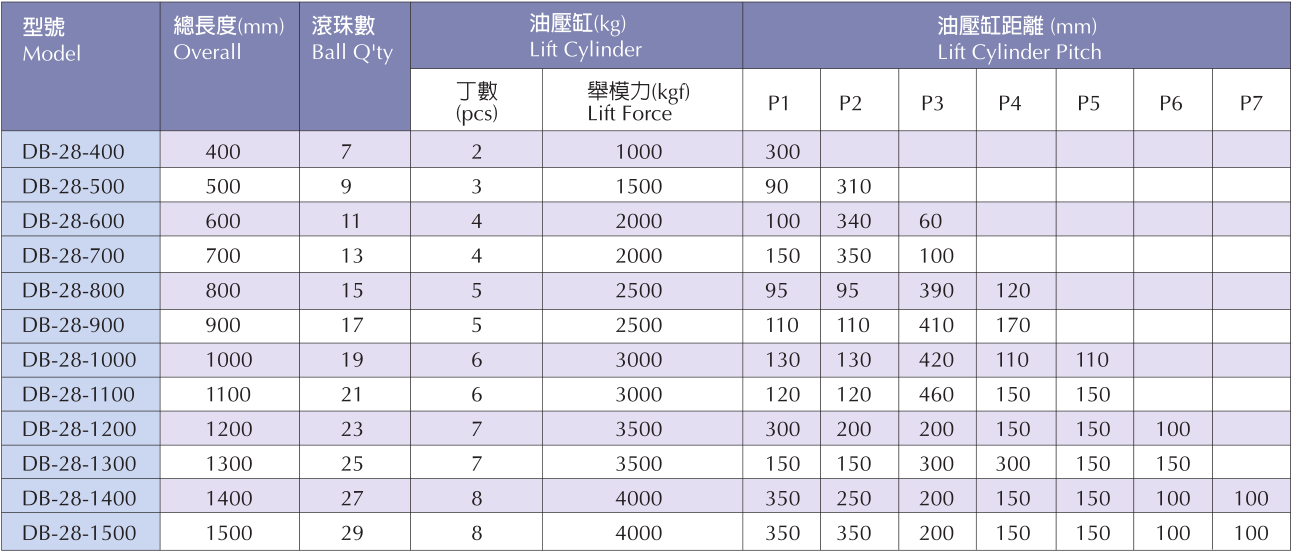

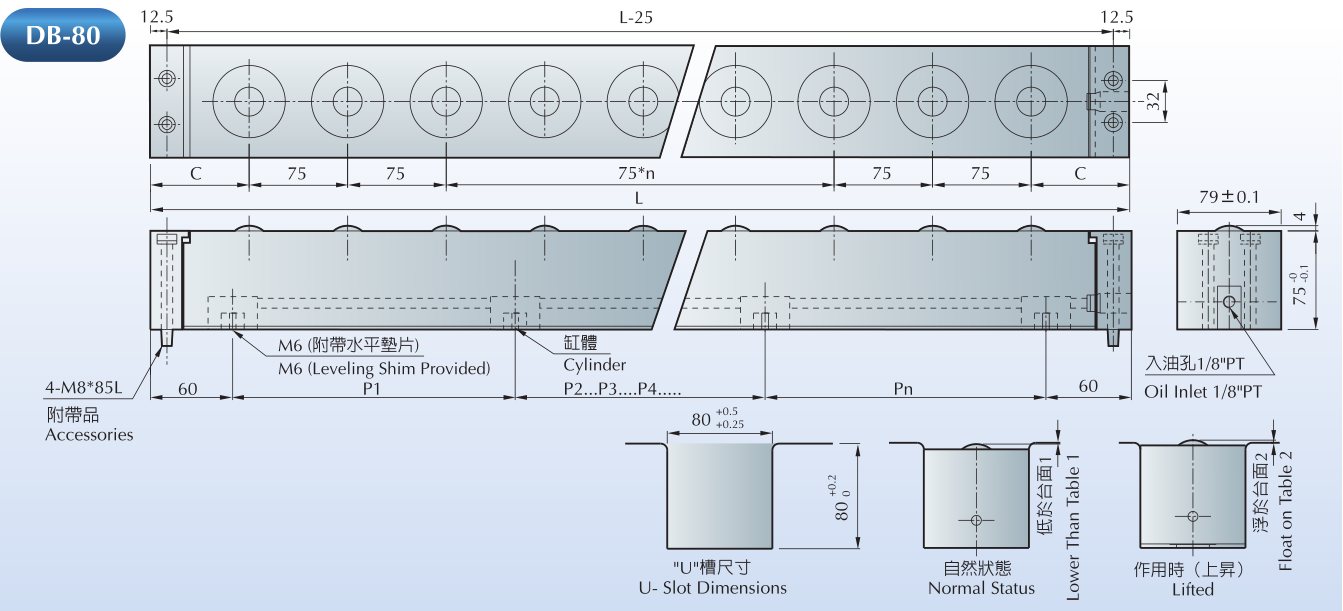

DB型油壓式舉模器，利用萬向滾珠的方式，適合前后左右移動模具時使用。
The hydraulic DB Die lifter employs universal bearings for superior forward and reverse,left and right motion of molds in and out of press machines.
●注：訂購時，如有下料孔請附臺盤圖。
For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom.
●注：訂購時，如有下料孔請附臺盤圖。
For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom.
●注：訂購時，如有下料孔請附臺盤圖。
For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom.
